    gbevin
    wrote on Sep 2, 2023, 1:03 PM last edited by gbevin Sep 4, 2023, 12:20 PM
    #1

    I've been experimenting with a freely reararrangeable 3D printed Eurorack case solution and I'm far enough along that I decided to build a complete case for my AJH MiniMod system.

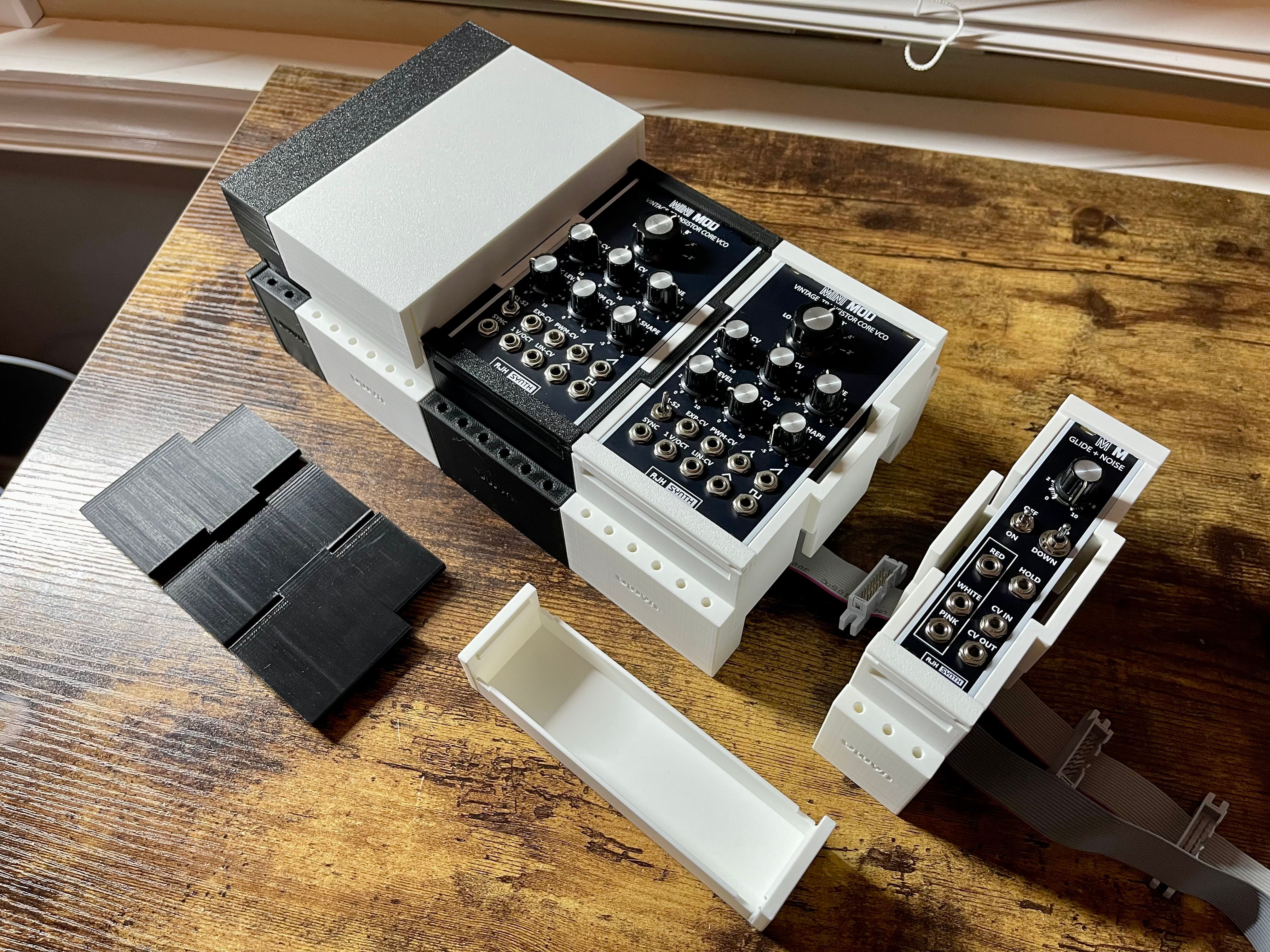

    I've received a lot of questions for the last week, so here are a few photos that show some of the assemble and features.

    Modules are added without the need for screws, they slot into a back slot and then a cover snaps in place to keep the front tightly pressed down.


    Each module can have its own case box and can sturdily slide together with other boxes in any arrangement.

    The back side of the boxes can be removed for easy access to connectors. Modules are connected to power through a flying bus cable and a 4ms Row Power module. Edges on the sides finish the complete case off nicely.


    Holes on the front back sides can hold 3.5mm cables that you're not using for patching.

    Once assembled, each case box can still be rearranged, new modules can be added.

    This is a prototype of a sturdy can holder that prevents any accidental split from happening.


    I'm considering open sourcing it so that the community can use the connection mechanisms to build out more case boxes that could be useful.

    I'm curious to hear any thoughts and comments about this system.

    more details about the design stages of this effort can be found in this thread

    1 Reply Last reply
    1
    • S Offline
      S Offline
      selgart
      wrote on Sep 2, 2023, 2:07 PM last edited by
      #2

      Been following the progress of this on Mastodon and this is yet one more reason for me to finally go out and get a 3D printer, especially if you do decide to open-source it. I have to say that I was deeply concerned and could not figure out what on earth you were thinking when you decided to put those weird patch points on the bottom of each case, so I was definitely relieved when I read this post and realized they were "merely" patch cord storage LOL

      G 1 Reply Last reply Sep 2, 2023, 2:14 PM
      1
      • S selgart
        Sep 2, 2023, 2:07 PM

        Been following the progress of this on Mastodon and this is yet one more reason for me to finally go out and get a 3D printer, especially if you do decide to open-source it. I have to say that I was deeply concerned and could not figure out what on earth you were thinking when you decided to put those weird patch points on the bottom of each case, so I was definitely relieved when I read this post and realized they were "merely" patch cord storage LOL

        G Offline
        G Offline
        gbevin
        wrote on Sep 2, 2023, 2:14 PM last edited by gbevin Sep 4, 2023, 12:21 PM
        #3

        @selgart these would be a good entry into 3D printing since they're actually pretty easy to print, so you can focus on getting to know what needs to be learned in the 3D printing realm. Yeah the cable holders are inspired by my CableCube product, though don't have the clicky feel since that wasn't possible with the rest of the design

        1 Reply Last reply
        0
        • G gbevin referenced this topic on Sep 4, 2023, 4:19 PM
        • G Offline
          G Offline
          gbevin
          wrote on Sep 11, 2023, 1:13 AM last edited by
          #4

          Decided on a name: RackBlox it is!


          1 Reply Last reply
          1
          • G Offline
            G Offline
            gbevin
            wrote on Sep 13, 2023, 12:55 AM last edited by
            #5

            Latest prototypes look like they might be the final ones, now with an individual lid that sturdily snaps in place and can be used when joined together in a rack. Also, lots of tiny internal tweaks for tolerances and ease of use.

            1 Reply Last reply
            1
            • S Offline
              S Offline
              selgart
              wrote on Sep 13, 2023, 1:12 AM last edited by
              #6

              Been thinking about these a bit. Would it be possible to make some sort of “negative” of the patch cable storage section? In other words, you’d have a block the size of two patch cable bits, as if the bottom of one module were to combine with the top of another, with two rows of pins pointing downwards so you could connect two single rows together to make a two-row system.

              G 1 Reply Last reply Sep 13, 2023, 1:14 AM
              0
              • S selgart
                Sep 13, 2023, 1:12 AM

                Been thinking about these a bit. Would it be possible to make some sort of “negative” of the patch cable storage section? In other words, you’d have a block the size of two patch cable bits, as if the bottom of one module were to combine with the top of another, with two rows of pins pointing downwards so you could connect two single rows together to make a two-row system.

                G Offline
                G Offline
                gbevin
                wrote on Sep 13, 2023, 1:14 AM last edited by
                #7

                @selgart that would be too brittle, the 3D printed volume that is inserted would be too narrow and long. My plan is to simply have similar joints at the top and bottom of alternate back sections. Then you can slide them in just like the side blocks.

                1 Reply Last reply
                0
                • G Offline
                  G Offline
                  gbevin
                  wrote on Sep 13, 2023, 9:01 PM last edited by gbevin Sep 13, 2023, 5:01 PM
                  #8

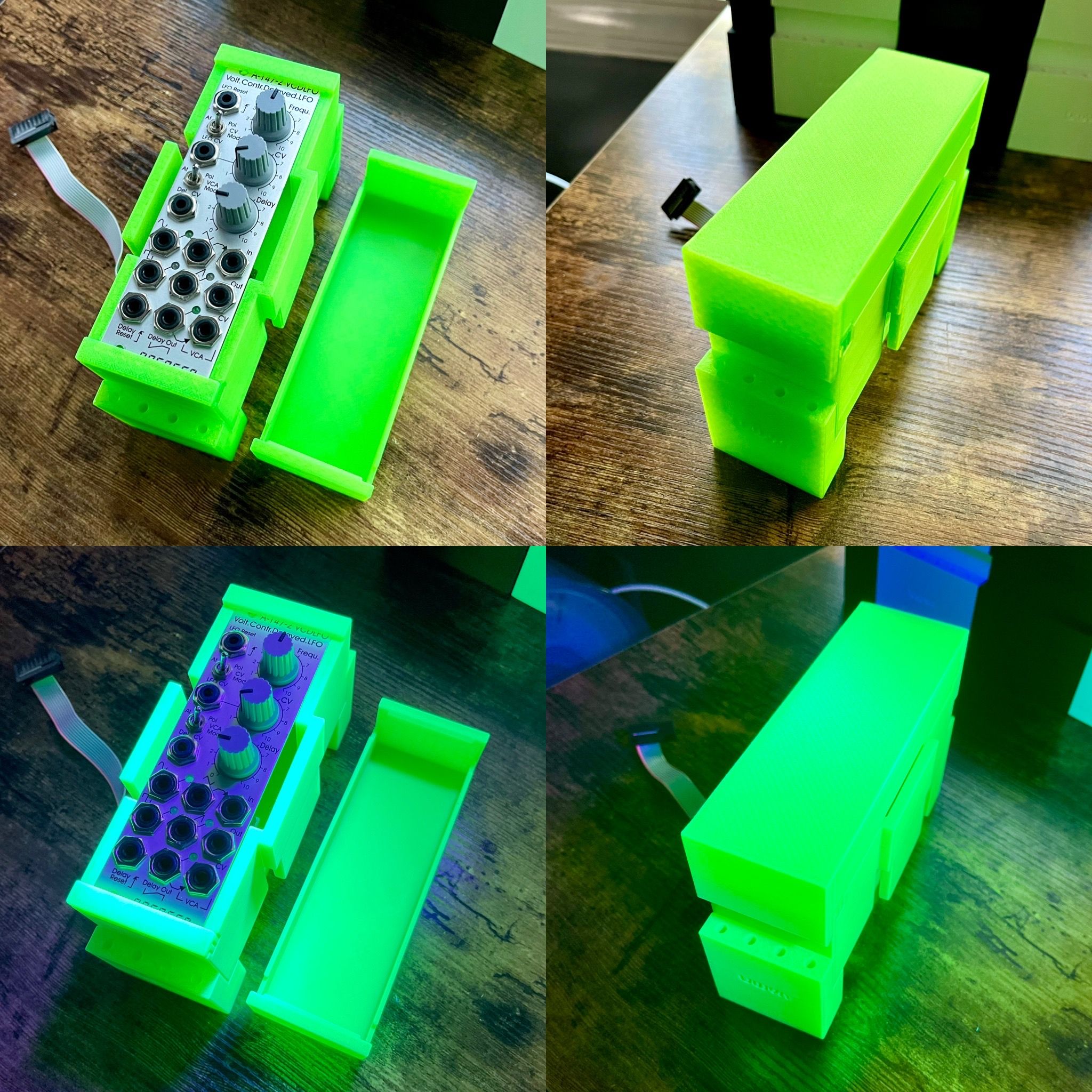

                  Some people have asked me if the RackBlox have to be either black or white. That's the beauty of 3D printing, almost any color is possible! How about translucent fluorescent blacklight reactive green?! 🫶

                  1 Reply Last reply
                  1
                  • G Offline
                    G Offline
                    gbevin
                    wrote on Sep 15, 2023, 11:36 PM last edited by
                    #9

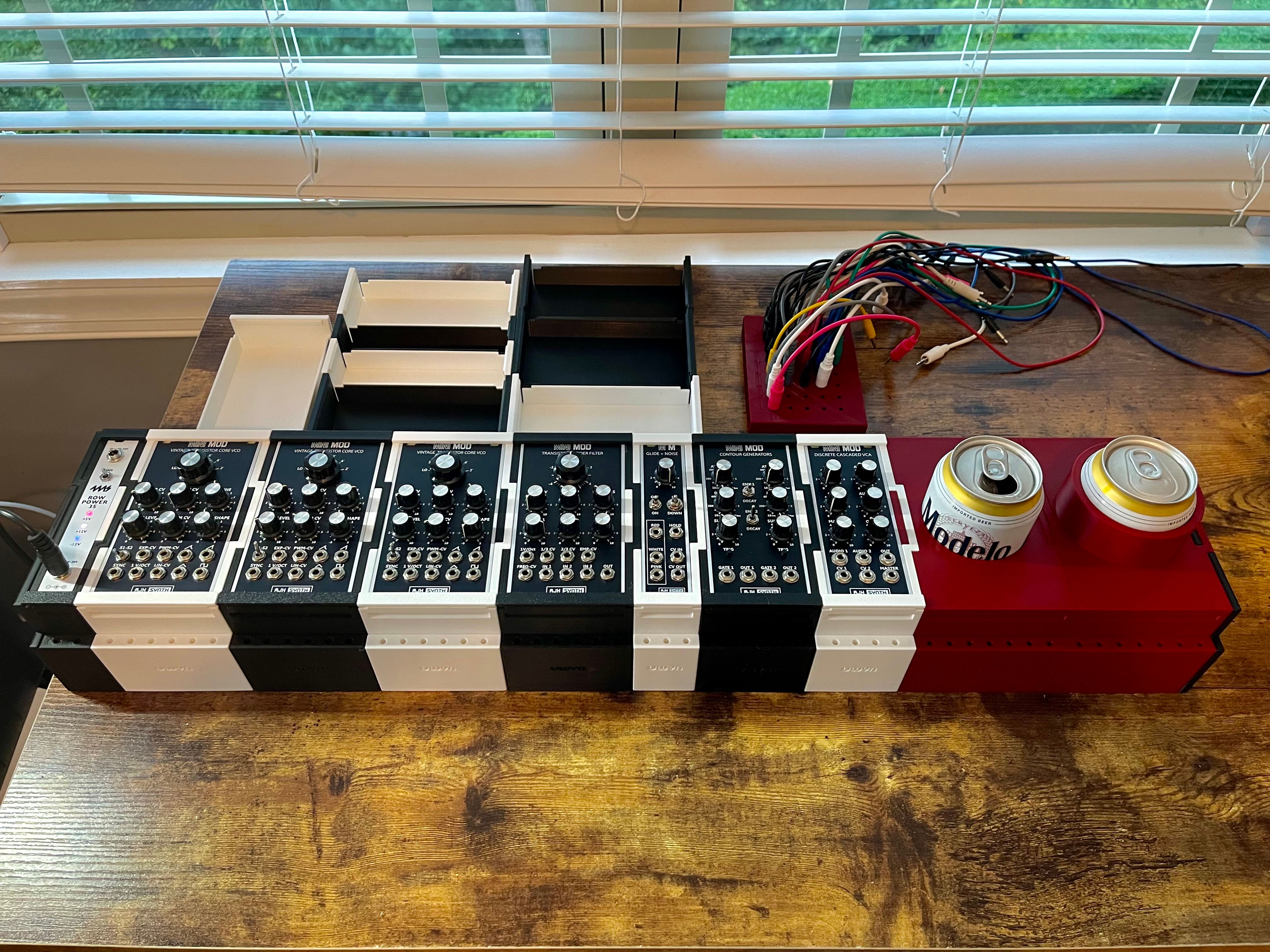

                    Test printing the last sizes: 16hp, 18hp, 20hp and then I think I'm ready to release the first version of RackBlox.

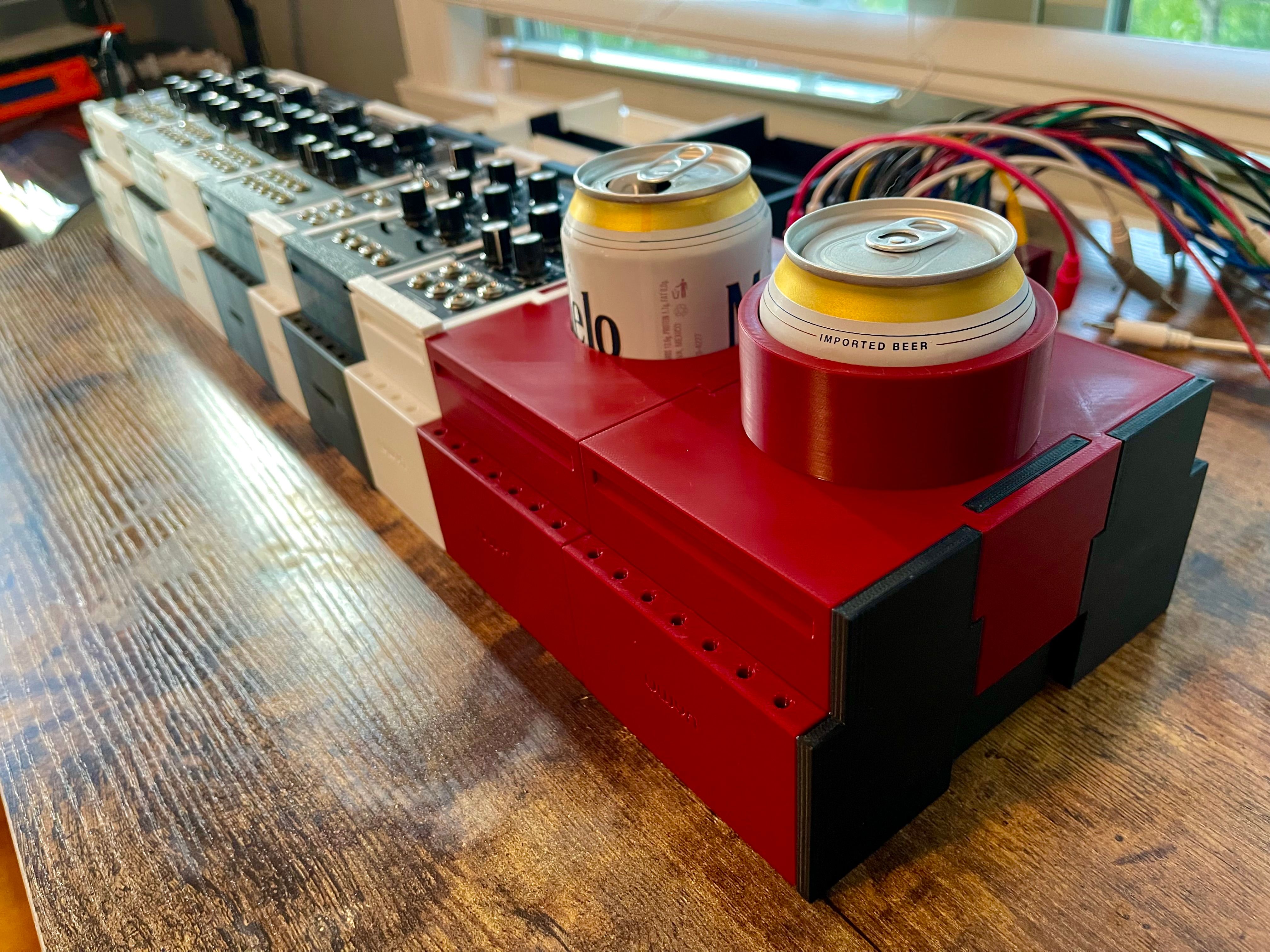

                    Now featuring a drink koozie as well as a drink holder.

                    The double wall with a sealed air gap between makes for an excellent insulator and keeps your next drink cold, while you're enjoying the current one 😁


                    1 Reply Last reply
                    1
                    • G Offline
                      G Offline
                      gbevin
                      wrote on Sep 16, 2023, 5:38 AM last edited by
                      #10

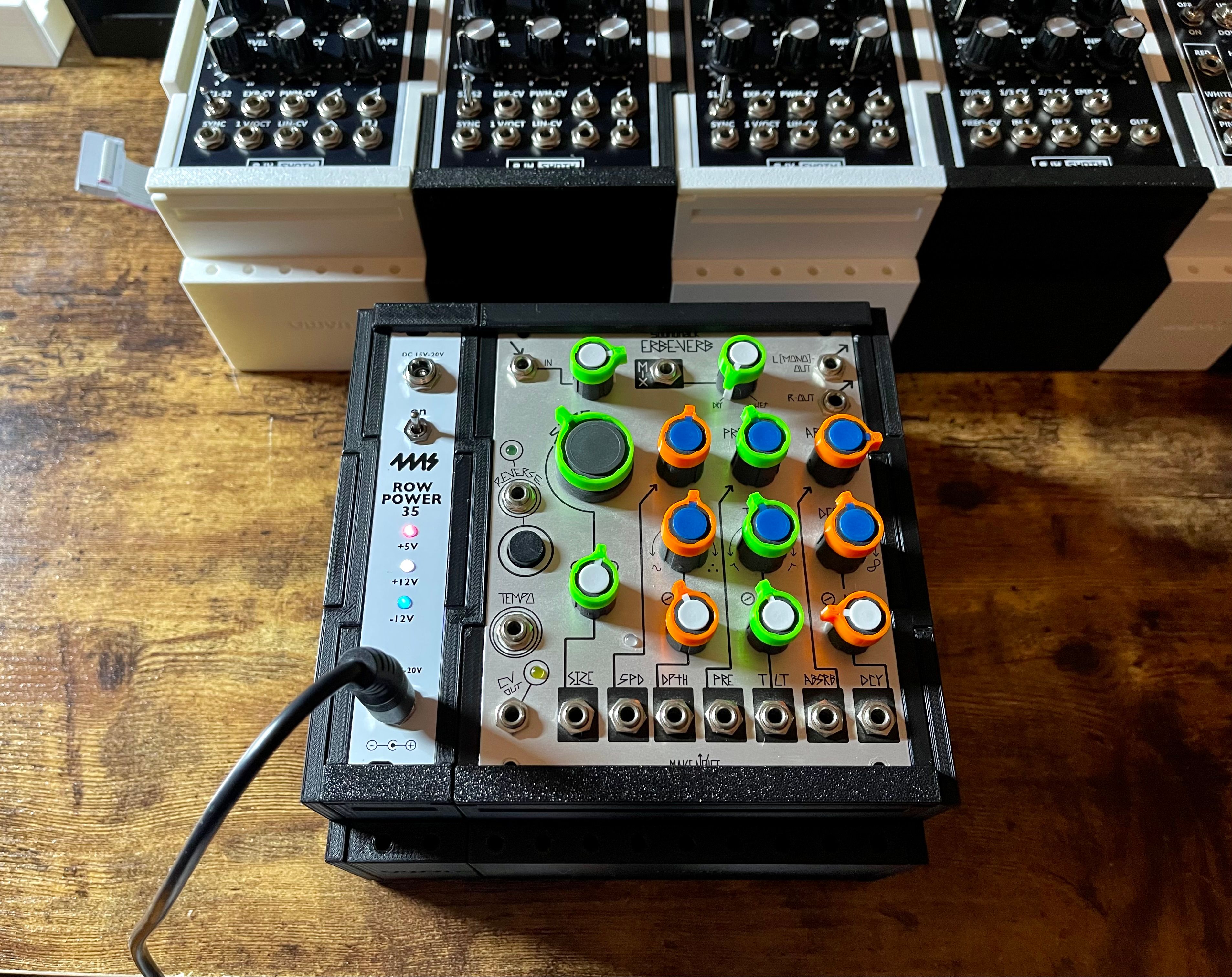

                      With RackBlox, if you need just that Erbeverb sound, slide out your power block and connect it up ... instant standalone rack.


                      1 Reply Last reply
                      1
                      • G Offline
                        G Offline
                        gbevin
                        wrote on Sep 16, 2023, 12:49 PM last edited by
                        #11

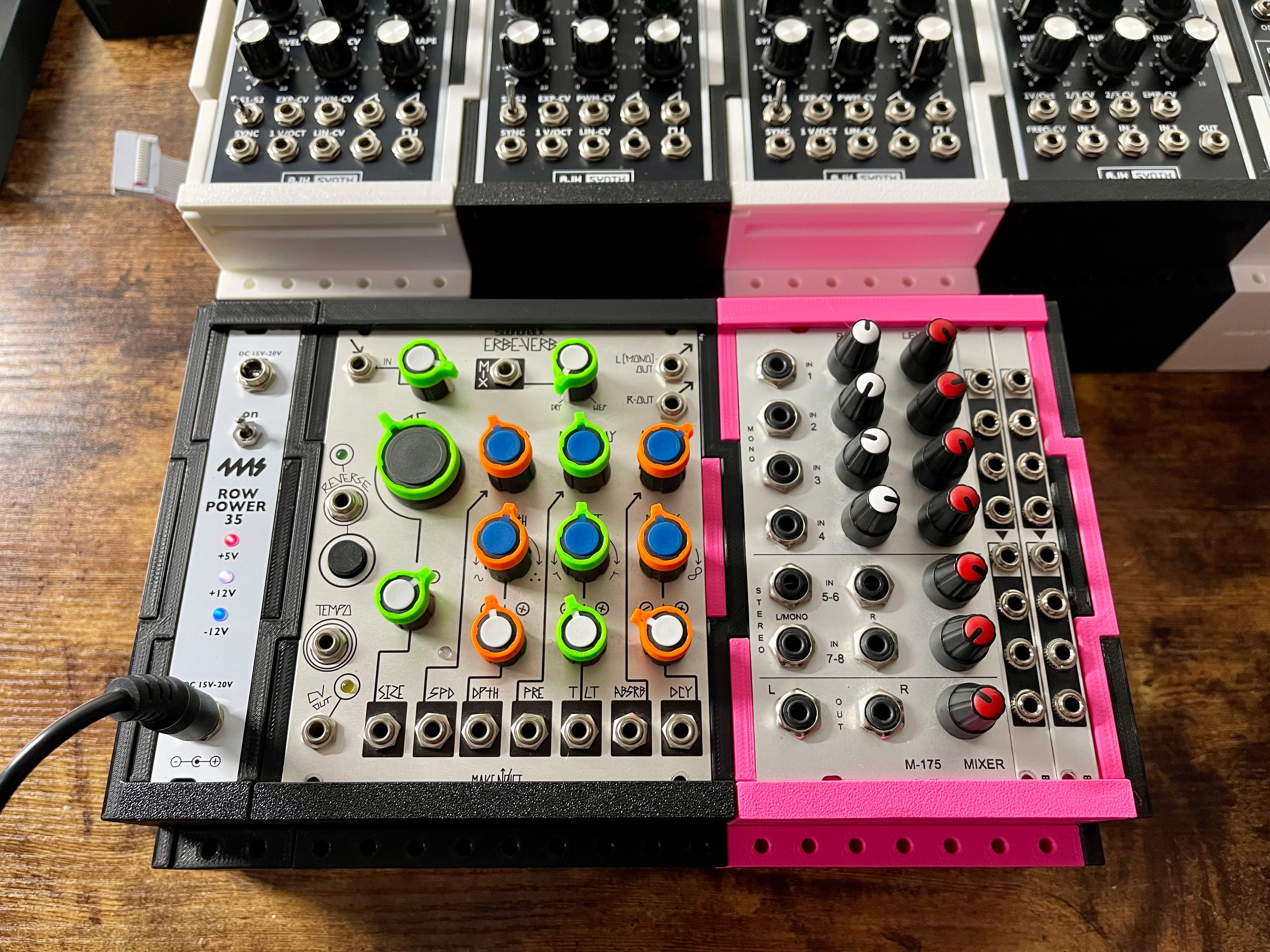

                        Maybe you actually also needed a stereo mixer and two buffered mults in that standalone case, just slide in another RackBlox and you're done!


                        1 Reply Last reply
                        1
                        • G gbevin moved this topic from 3D Printing & Design on Sep 17, 2023, 1:05 AM
